Waste Packaging vacompact universal 90 L

The waste packagers of vacompact differ in terms of waste volume, waste collection, loading and device dimensions.
Features like injection of disinfectant, odour blocker and exhaust air filter are included in the basic equipment.

Each device can be supplemented with rolls. The special vacompact waste bags are available in the strength of
80 to 140 μm, 5-ply, gastight, certified and with declaration of no objection.

Technical Details

Picture vacompact 90 litres frontloader

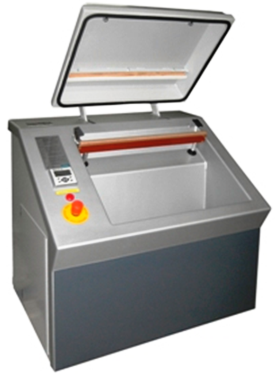

vacompact toploader
90 litres waste volume

90 litres waste volume per vacuum process

  • Waste collection outside the unit.
  • Material: powder-coated VA-steel
  • Connected load: 230 V-50Hz-1KW
  • Security: EN 60204-VDE 0113
  • Safety category: IP 54
  • Noise emission: 62 dB
  • Control: SPS

Basic Equipment

  • Injection of disinfectant and odour blocker.
  • UVC exhaust air filter.


  • Weight: 140 kg
  • Width: 886 mm
  • Height: 891 mm
  • Depth: 735 mm

Waste bags

  • Volume: 90 litres
  • Lenght: 1050 mm
  • Width: 580 mm
  • Strength: 80 to 140 μm

Security & Maintenance

All functions are controlled by PLC (Programmable Logic Controller) and touch screen. Vacompact fullfills all HACCP criteria and requirements (Hazard Analysis Critical Control Points)! Moreover, the system is controlled via an emergency switch.

The waste packagers of vacompact are almost maintenance free. Thanks dry running vacuum pump and without hydraulic - neither oil nor water - must be filled. The available power supply is sufficient.


Vacompact is not suitable for the packaging of liquids!
Very sharp edged waste such as injection needles and crushed glass, are vacuumed in extra tear-resistant vacompact waste bags with 140 μm.


We look forward to your questions about vacompact.
